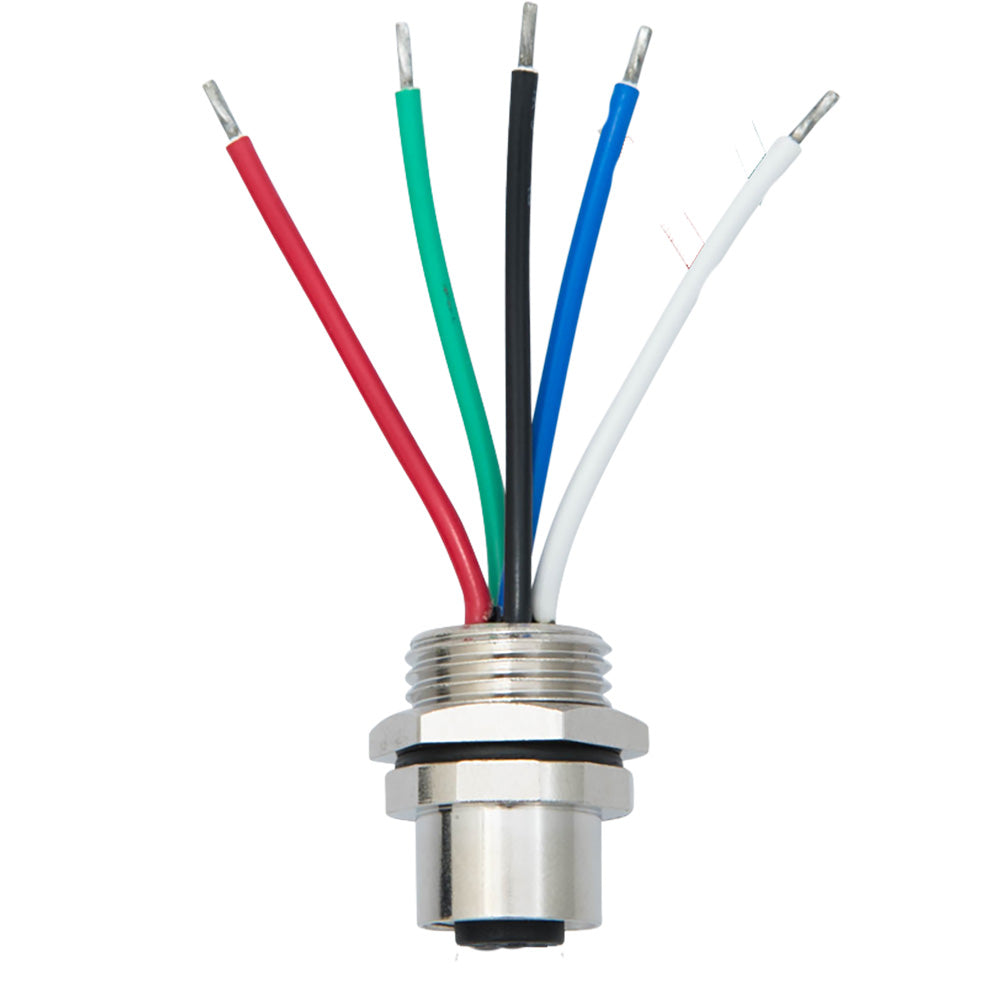

Actisense Rear Panel Mount NMEA2000 Wired Micro 5-Pin - Female [A2K-PMW-F]
- In stock, ready to ship
- Backordered, shipping soon
Rear Panel Mount NMEA2000 Wired Micro 5-Pin - Female
Panel-mount wired connectors available from Actisense allow NMEA 2000 installations through watertight bulkheads (or panels) to be achieved.
Waterproof seals ensure the integrity of the NMEA 2000 connection and bulkhead/panel.
The female panel mount wired connector can easily replace any of the existing ‘drop’ glands on the Actisense QNB-1 to create a quick pluggable NMEA 2000 connection option.
The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge.
Technical Specifications:
Electrical
- Rated Current - 4A
- Rated Voltage - 60VDC
Mechanical
- Contacts - Brass, gold-plated
- Contact Carrier - Nylon & GF
- Contact Polarization - Standard M12-"A"-Polarization
- Mating Thread - M12
- Housing - Brass, nickel-plated
- Mounting Thread - PG9
- Mounting Nut - Brass, nickel plated - PG9
- Mounting Hole Diameter - 15.3mm
- Wires - 18 AWG (stripped and tinned)
- Wire Jacket - PVC
- Weight - 20g
Approvals and Certifications
- Protection - IP67 (when mated)
- Operating Temperature - -25°C to +90°C
- Connector Specification - Meets IEC61076-2-101
Specifications:
- Cable Length (Feet): N/A
- Connection Gender: Female
- Data Interface: NMEA 2000
Owner's Manual (pdf)
Brochure (pdf)
