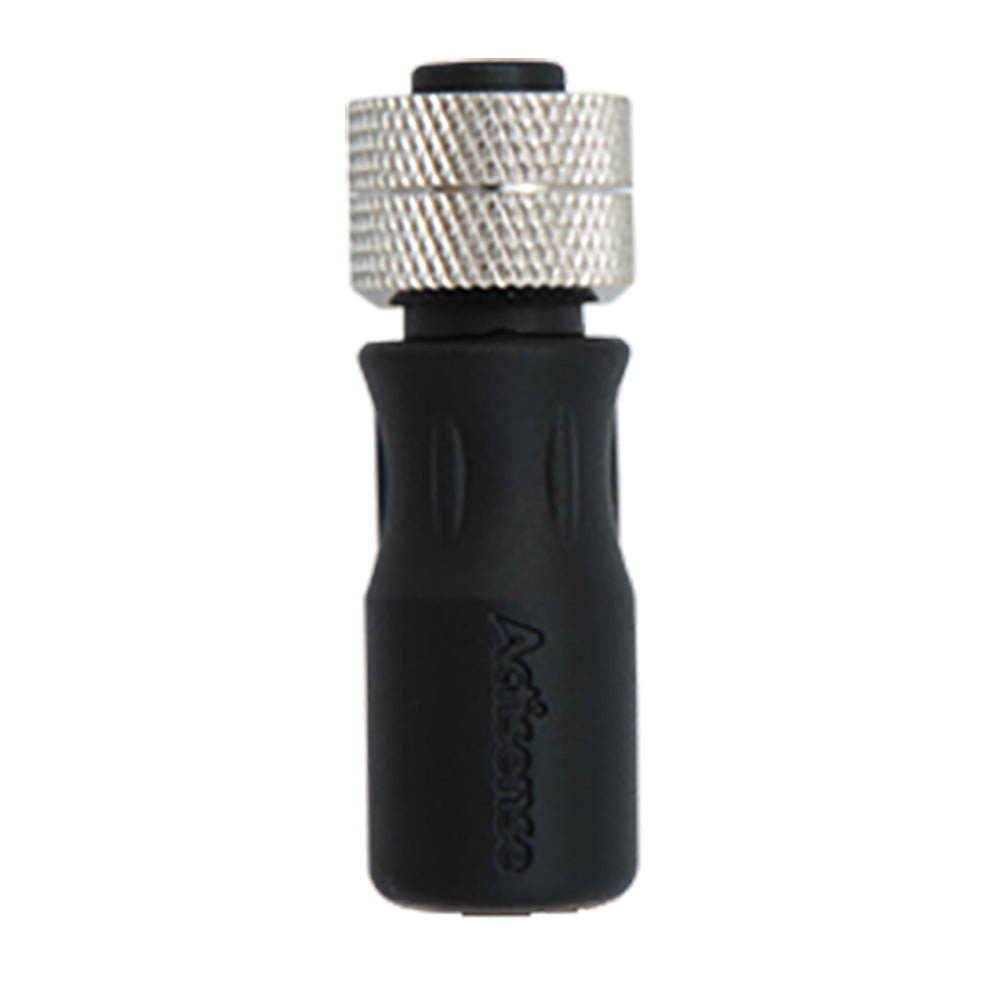

Actisense NMEA2000 Micro Terminator - Female [A2K-TER-F]
Regular price$20.86
/
- In stock, ready to ship
- Backordered, shipping soon
NMEA2000 Micro Terminator - Female
Actisense terminators are exceptionally robust, designed to withstand the harsh conditions of the marine environment, and are easy to install.
Each NMEA 2000 installation must have precisely two termination resistors installed, one at each end of the backbone, to ensure proper operation and signal integrity.
The Actisense range of NMEA 2000 connectors and cables has been designed using our specialist interconnect and NMEA knowledge
Technical Specifications:
Electrical
- Rated Voltage (power pair) - 60VDC
- Rated Current - 4A
- Internal Termination Resistors - 120 Ω ± 1% 500mW
Mechanical
- Female Contact - Phosphor bronze, gold plated
- Contact Carrier - PA66 (30% Glass filled), black
- Contact Polarization - Standard M12 -“A”- polarization
- Mating Thread - M12
- Screw Cap - Brass, nickel plated
- O-Ring Seal - Rubber, Black
- Housing - PVC, black
- Weight - 15g
Approvals and Certifications
- Protection - IP67 (when mated)
- Operating Temperature - -25°C to +70°C
- Storage Temperature - -40°C to +85°C
Specifications:
- Cable Length (Feet): N/A
- Connection Gender: Female
- Data Interface: NMEA 2000
